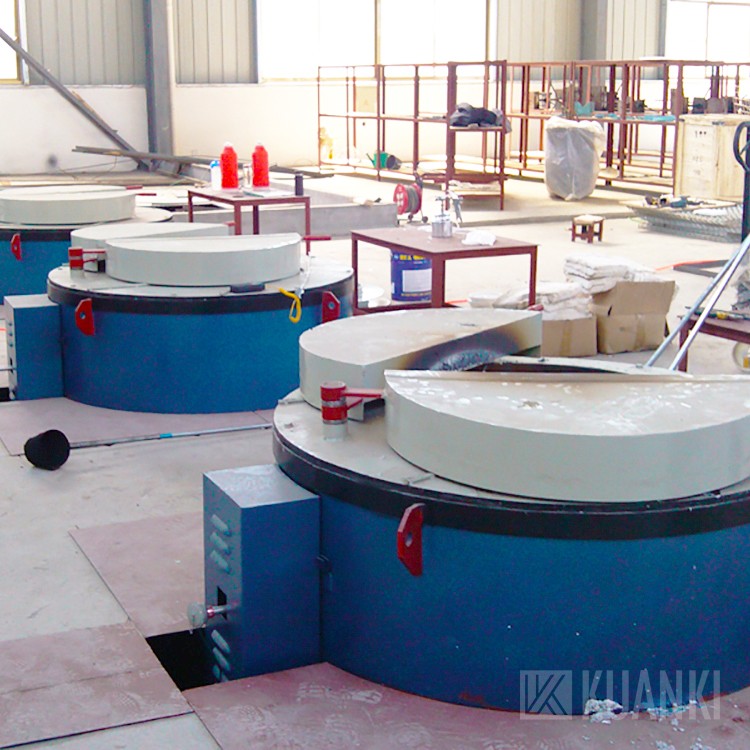

Crucible Furnace For Melting Aluminum

Description:Main outline and explanationThe furnace structure is mainly composed of furnace body, furnace lining, heating element, temperature control system and so on.1.furnace bodyThe furnace body is mainly made of all kinds of steel and plate. The furnace cov..

Description

Main outline and explanation
The furnace structure is mainly composed of furnace body, furnace lining, heating element, temperature control system and so on.
1.furnace body
The furnace body is mainly made of all kinds of steel and plate. The furnace cover is for the convenience of heat preservation and fetching. The opening of the furnace lid adopts the left and right open structure. When the furnace is used, the furnace lid is opened and put aside, and the furnace lid is closed when the furnace is not heated.
2.The use of composite lining structure, furnace lining using energy-saving refractory brick (high quality brick by Yixing second refractory plant), made of high quality aluminum refractory fiber between furnace refractory bricks and the furnace shell glue (refractory cotton by Shandong Luyang), and is filled with insulation vermiculite powder. Used in the furnace to reduce external insulation and the temperature of the furnace, so as to improve the working environment. At the same time, in order to take into account the leakage of aluminum liquid, damage the heating element, keep the discharge holes in the bottom of the furnace and prevent the leakage of aluminum liquid.
3.crucible
Graphite crucible is used in the melting electric heating furnace. To consider the service life of the crucible and to reduce the damage to the furnace because of the leakage of the crucible.
4.heating element
The arrangement of the heating Original: the resistance wire of 0Cr21AL6 and arranged around the furnace.

PS:Our company can provide customized design according to user requirements.


Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
