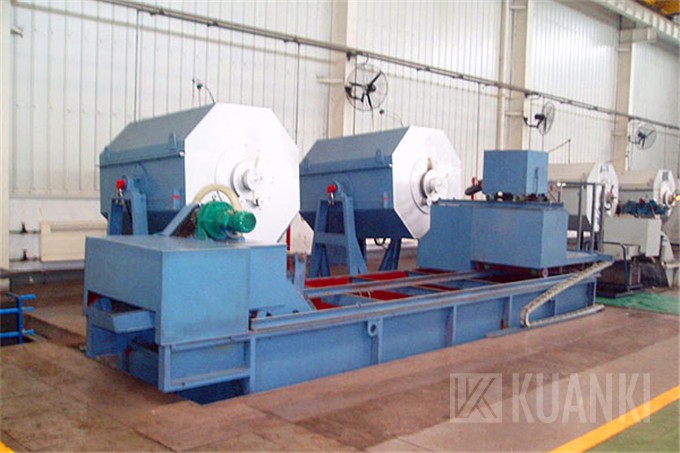

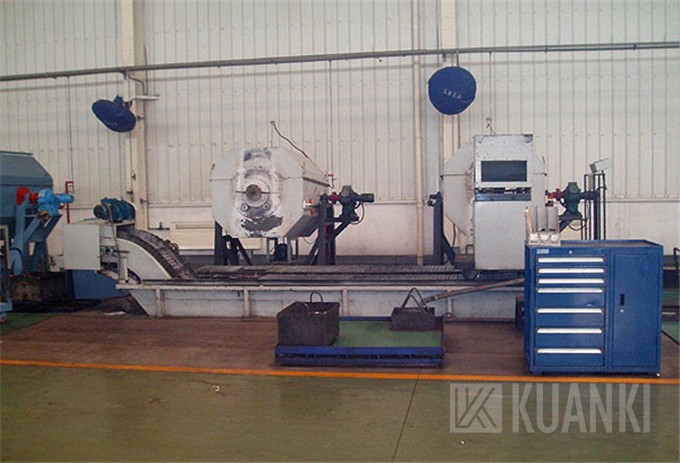

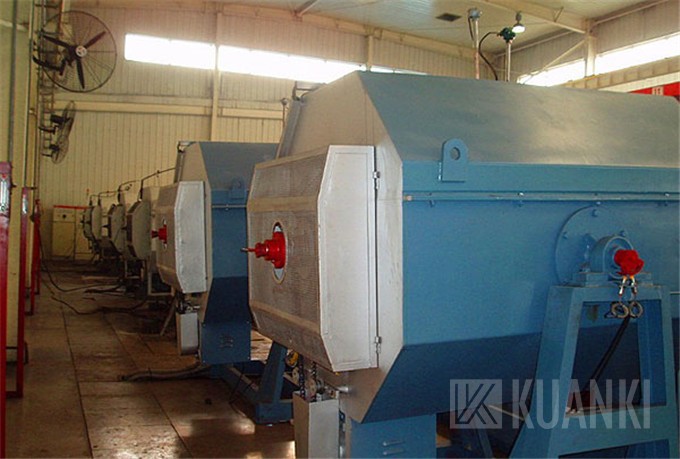

Roller Type Resistance Furnace

Description:This series of tilting rotary resistance furnace (referred to as electric furnace) is used for small parts, standard parts gas carburizing, gas carbonitriding, bright quenching and other heat treatment in light industry, textile, instrumentation, ele..

Description

This series of tilting rotary resistance furnace (referred to as electric furnace) is used for small parts, standard parts' gas carburizing, gas carbonitriding, bright quenching and other heat treatment in light industry, textile, instrumentation, electrical appliances, bearings and other industries. Especially suit for mass production of small parts treatment, such as bicycle parts, sewing machine parts, bearing ball, roller and other parts.
The advantages are quality uniform for workpiece, Multi-purpose, high productivity, easy operation and maintenance. It is one of the furnace that using gas carburizing and gas carbonitriding process to eliminating waste pollution in the heat treatment industry and to replace the liquid media as the agent of the old process to cut cyanide salt.

Composed by furnace body, rotary structure, tilting device, control system, infusion system and others.

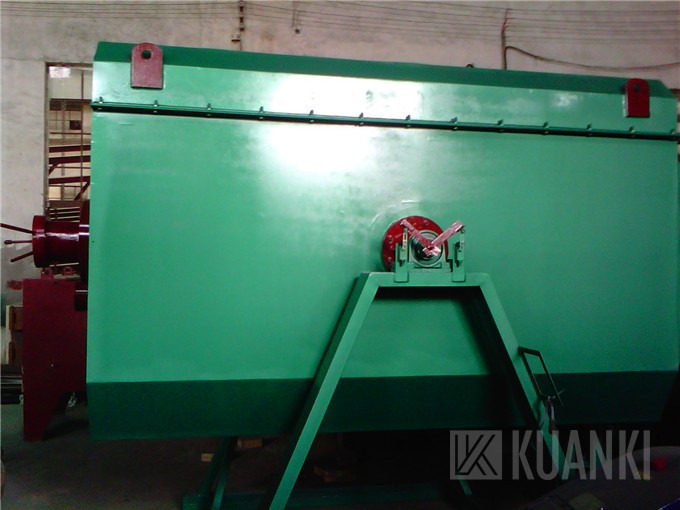

1、Composed by the body, bracket, bearing seat. The body consists of furnace shell, lining and furnace tank. In order to facilitate the installation and maintenance of the furnace tank, both ends are bolted.
The refractory layer of the lining is made of ultra-lightweight refractory brick masonry. The insulation layer is made of aluminum silicate refractory fiber and expanded perlite block. The heating element is made of spiraled  resistance wire and fixed on the bricks.
Furnace tank material can be cast steel and welded steel. Welded with thick heat-resistant steel plate. There are two anti-mixed bar. The front end of the furnace tank is supported by a roller, and the rear end is supported by a fixed bearing. The furnace is free to expansion and shrink due to temperature changes.
Gas and liquid media are injected from the rear of the infusion device, the exhaust from the front door discharge and burning, the workpiece is loaded and unloaded from the door.
2、Composed by motor, gearbox, big & small sprocket, chain. The tilting angle is adjustable.
3、Organic liquid and ammonia and other media, respectively, injected from the top of the two pipe fittings nozzle. Measured by observing the amount of liquid droplets, ammonia and other gas flow through.


Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
