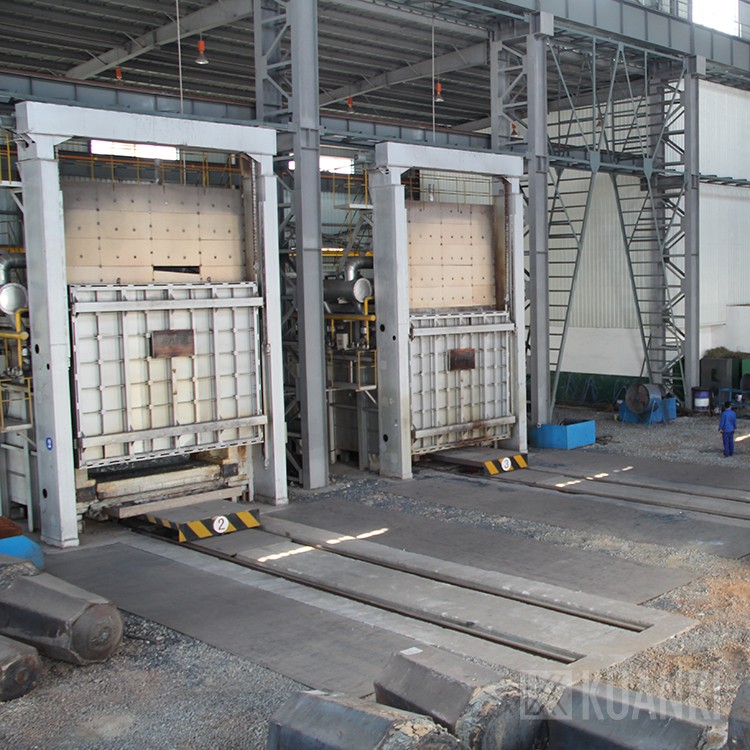

Bogie hearth type Forging Heating Furnace

Description:1. Various of combustion gases as the medium, heating through the various types of burner combustion, the maximum temperature up to 1200 ℃.2. Furnace frame welded by a variety of large and medium-sized shaped steep in the site. Shell is color steel ..

Description

1. Various of combustion gases as the medium, heating through the various types of burner combustion, the maximum temperature up to 1200 ℃.
2. Furnace frame welded by a variety of large and medium-sized shaped steep in the site. Shell is color steel plate. High-alumina full fiber refractory silk blanket module for the lining. Sealing and energy-saving effect is obvious.
3. Car frame welded by a variety of large I-beam steel, channel steel, angle steel and thick steel plate and other combinations.
4. The drive is reliable. The transmission system adopts motor - reducer. The installation method is shaft-mounted. Compact structure, strong assembly, flexible access, simple operation and convenient maintenance.
5. Car refractory masonry with high aluminum stereotypes brick structure, the sealing effect is good, high compressive strength. The car sets the iron plate for the stacking of the workpiece.  The sealing of car and lining with automatic compression structure. Open and close of the side seal connects with the furnace in & out system.
6. The door is made of high-alumina full fiber refractory silk blanket and steel frame structure. Electric hoist lift. Door sealing mechanism with long levers spring-type automatic compression cam mechanism and soft side seal device. That ensures no friction from top to bottom, easy, safe and reliable.
7. Chimney installed automatic pressure control device and butterfly valve, etc., can adjust the cooling rate.
8. Heating with high-speed burner, evenly distributed on both sides. The actuator adjusts the air flow, adjusts the amount of gas by the proportional valve, there is lower limit of the gas and the air flow, the control tube is equipped on the gas pipe of each burner, and each burner is equipped with independent and complete combustion Controller which with automatic ignition, flame detection, fire alarm and automatically cut off gas features.

PS:Our company can provide customized design according to user requirements.


Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
