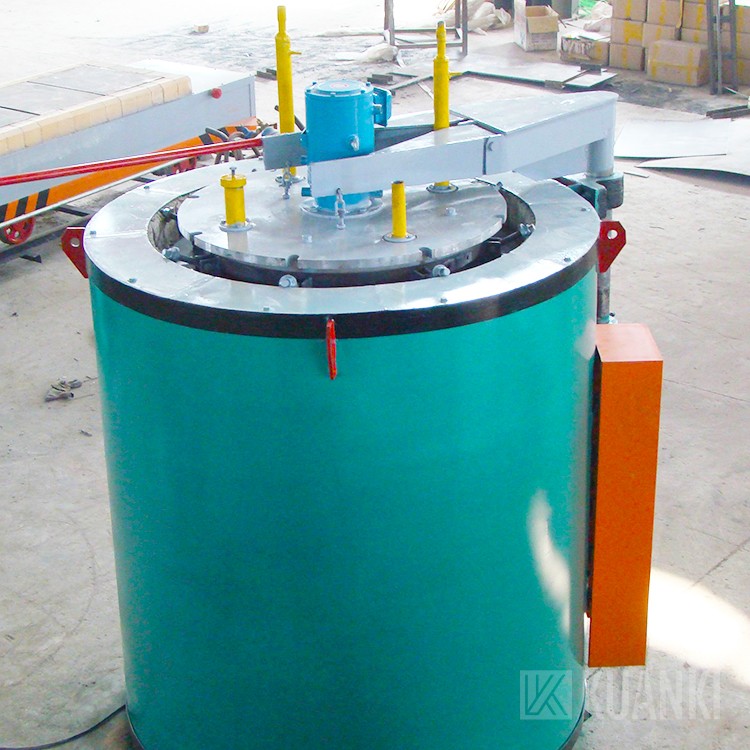

Pit Type Tempering Furnace

Description:This series electric furnace has furnace body, cover, cover open and close device, hot air circulation device, protective cage and temperature control system.The furnace shell is made of welded steel. Inner is masonry pit chamber made of 0.6g/cm2 sup..

Description

This series electric furnace has furnace body, cover, cover open and close device, hot air circulation device, protective cage and temperature control system.
The furnace shell is made of welded steel. Inner is masonry pit chamber made of 0.6g/cm2 super light energy saving refractory bricks. The bearing parts and easy impacted part is made of heavy refractory brick(add proper amount of high temperature binder to the slurry when masonry) to enhance the structure strength of the lining. Insulation layer using aluminum silicate refractory fiber, asbestos board and other insulation materials to improve the furnace insulation properties, reduce side surface temperature.

Pit type resistance tempering furnace is cycle-operation electric furnace, mainly used for tempering < 650℃ in air of medium and small metal and alloy parts.
The electric furnace has a ventilator device and a wind guide system so that the furnace temperature uniformity is controlled within ± 5 ℃ to ensure that the workpiece is heated evenly.
PID zero - crossing triggering thyristor, high precision smart table is used to the temperature control system. High precision temperature control, furnace temperature stability. Bit control can also be used.

PS:Our company can provide customized design according to user requirements.

井式回火炉 (2).jpg

Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
