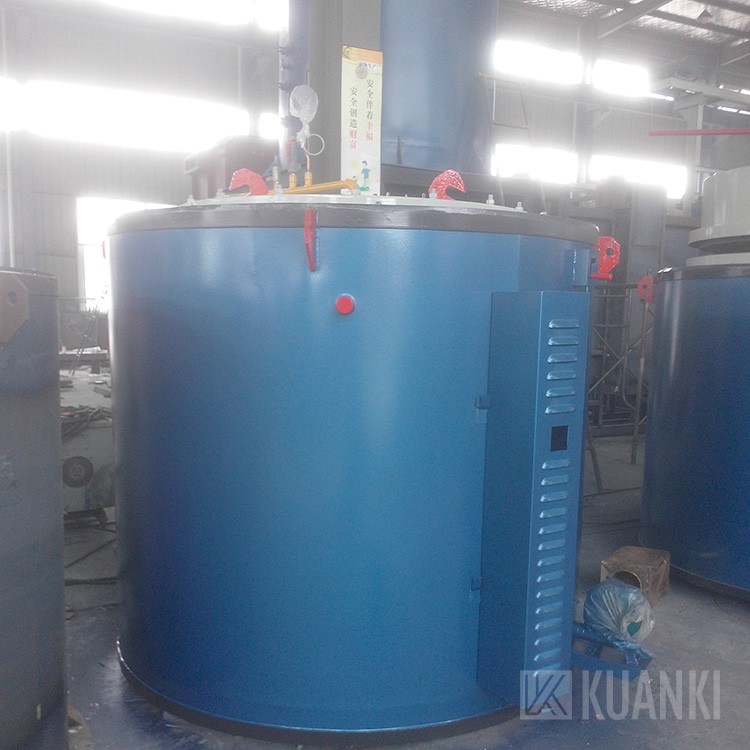

φ1.1×1.0m Pit Type Vacuum Furnace

Description:1.Furnace body is welded by channel steel and steel plate,side of furnace adopts light clay brick masonry. The heating element should hang on refractory silk bricks, the material of heating element is 0cr25ai5, round into a spiral shape. The thermal..

Description

1.Furnace body is welded by channel steel and steel plate,side of furnace adopts light clay brick masonry. The heating element should hang on refractory silk bricks, the material of heating element is 0cr25ai5, round into a spiral shape. The thermal insulation material is produced by shandong LuYang fiber cotton and vermiculite, the shell surface temperature is lower than 50 ℃ or less
2.Furnace tank device: this device is equipped with a retort, the material of furnace for 1 cr18ni9ti material, thickness of 8 ㎜ delta, stainless steel plate welding, using ¢350 ㎜ standard head at the bottom of the connection.
The upper mouth of the furnace is a flange with thick steel plate, and the water cooling device is processed into O type, u-shaped slot and sealed strip for sealing protection.
Furnace cover is a piece of the delta 25 ㎜ thickness of carbon steel, heat insulation box is made of stainless steel plate welded at the bottom of the barrel. Fill the insulation material.
The seal of the furnace and the cover of the furnace is fastened with various studs, and the air in and out air is installed on the cover plane of the furnace. The vacuum pump is also connected to the plane of the panel, and an explosion proof device is installed.
3.Control system
Control part adopts PID automatic zero work work, filling with dahua records, with the dragon power instrument operation, temperature uniformity of + / - 1 ℃, and install overtemperature alarm device.

PS:Our company can provide customized design according to user requirements.


Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
