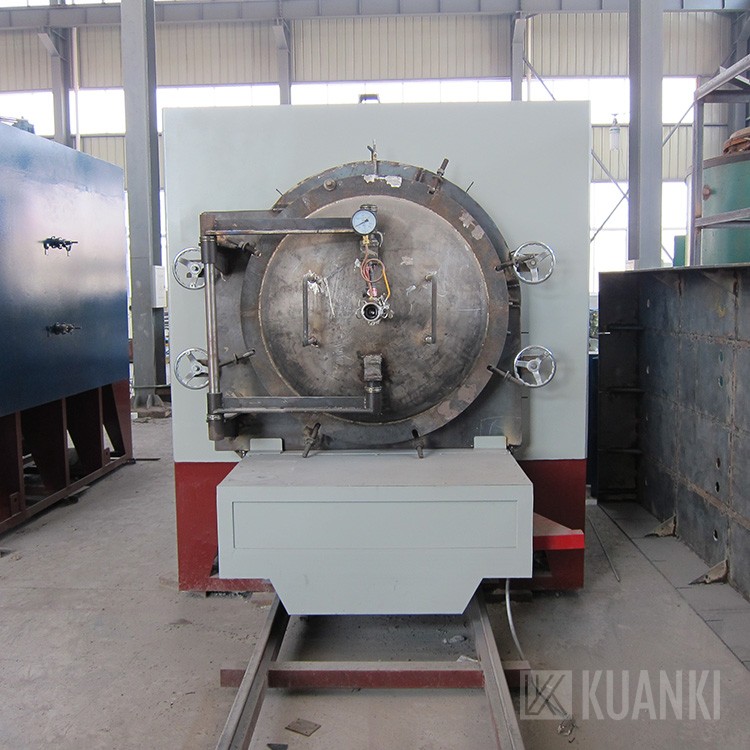

Bogie hearth type Vacuum Furnace

Description:This electric furnace is non-standard designed because of users individual demands, mainly consists of body, lining, retort and Pre vacuum device, car, transmission mechanism of car, electric heating unit, temperature control system and recording sys..

Description

This electric furnace is non-standard designed because of users' individual demands, mainly consists of body, lining, retort and Pre vacuum device, car, transmission mechanism  of car, electric heating unit, temperature control system and recording  system ,etc.
Furnace lining : Lining structure is full fiber, it is built by the high grade refractory fibers, adopts standard rivet firmwares  and the method of set pack is scientific and reasonable. This structure with low thermal-conductivity, low hot melting, eminent chemical stability, heat stability, Reting resistance, excellent intensity of tension tensile strength and corrosiveness resistance. Maximum temperature resistance of fiber 1200℃, rivet firmwares  use 304 sheet metal stamping forming. The surface is sprayed high temperature hardener after lining are finished, to form of a heat - insulation wall, Increasing the strength and thermal radiation of the lining, and further reduce the heat loss of the lining livestock, quickly achieve the heating up result, greatly improve the heating efficiency of furnace.
Steel structure: steel frame is consist of Shape steel and steel plates, etc. whole structure firm, stable, durable and reliable. All welding gaps are smooth, no air hole, slag and poor fusion and other faults. Furnace body's appearance straight, beautiful, Free from wrinkles or irregularities. external of furnace body are sprayed priming and finish according to related standards. The color code according to general standard (or users provided), the key demanded temperature resistant parts uses medium temperature-resisting paint. The outer sealing plate adopts cold rolled plate ≤3mm thickness in uniform sealing. The sealing plate is all screwed with big cap screw, Convenient for partial disassembly and maintenance, The overall appearance is beautiful.

PS:Our company can provide customized design according to user requirements.


Supply Ability

  • 60 Set/Sets per Year

Packing & Delivery

  • The furnace is nude packed but duly fixed inside the container.
  • The nearest sea port is Shanghai port which is the largest and most convenient port over China.
  • The delivery time is 45-120 days after receipt of down payment.
  • The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
  • Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Our Services

  • Reply your inquiry within 48 working hours
  • Experienced engineer instruct and sales communicate with you in fluent English.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
  • More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
  • Production: strict quality standard, to produce machine and induction coils.
  • Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
  • Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
  • Provide install and technology instruction by sending drawings, email, or telephone,video.
  • If you need, will arrange one engineer to your place,instruct install machine and training operators.
  • Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
  • After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
